E2260PDA - Ergonomic 22″ 16:10 display with speakers

Ergonomic 22″ 16:10 display with speakers
This energy efficient 16:10 monitor comes with speakers and DVI connectivity. Its ergonomic stand is height-adjustable and offers tilt, swivel and pivot functions.

Three-Year Warranty
AOC stands behind the quality of each and every monitor with a generous three-year warranty starting from the original date of purchase. Within the warranty period, any AOC displays with manufacturing defects or faulty components will be repaired or replaced at no additional charge. Read the complete AOC warranty statement for more information.

Adjustable Height
Raise or lower the screen to suit each individual’s height and seating preferences. The easy-to-adjust stand ensures hours of working comfort.

Integrated Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

Height adjustable stand
We care about your well-being. This is why this monitor offers height adjustment options, which help you find your perfect posture while working, playing or watching videos. Adapting your AOC monitor to your needs not only helps you reduce fatigue and keep your body healthy. In the end it lets you and your team achieve better results in whatever you are doing.

Kensington Lock
Kensington Lock is an anti-theft system, comprising a metal-reinforced hole in the body of the respective device, to use with a metal cable secured with a key/lock system. Kensington locks enable you to secure your AOC monitor during a LAN event, an organisation, or wherever you carry it.

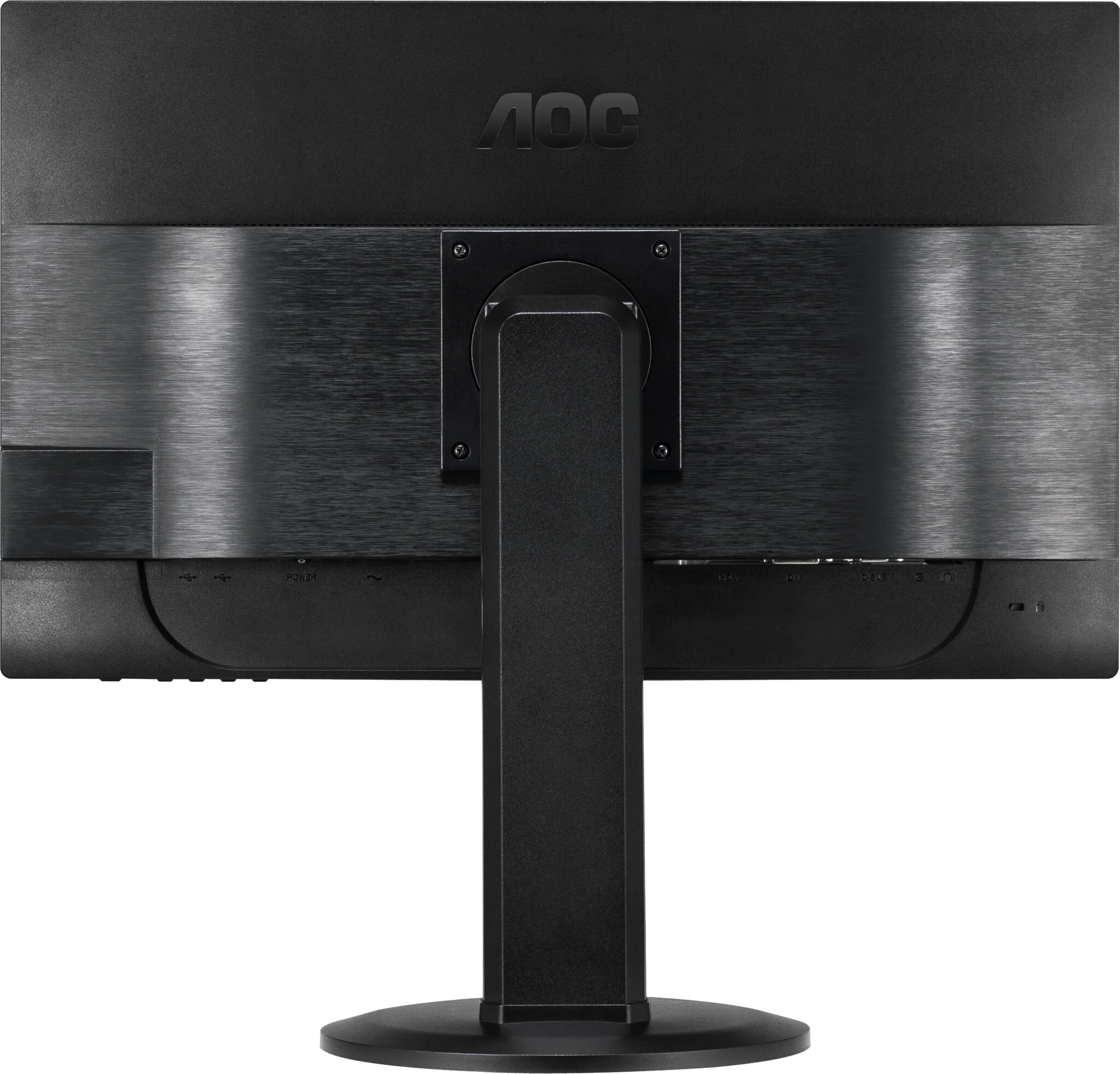

Vesa Mount
AOC’s Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.

Display
Pixel frequency	146 MHz
Viewable size, vertical	29.6 cm
Viewable size, horizontal	47.4 cm
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Pixel pitch	0.282 x 0.282 mm
Display number of colours	16.78 million colours
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Aspect ratio	16:10
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Screen shape	Flat
Response time	5 ms
Display brightness (typical)	250 cd/m²
Backlight type	W-LED
Panel type	TN
HD type	WSXGA+
Touchscreen	No
Display technology	LED
Native aspect ratio	16:10
Display resolution	1680 x 1050 pixels
Display diagonal	55.9 cm (22")

Multimedia
RMS rated power	4 W
Number of speakers	2
Built-in camera	No
Built-in speaker(s)	Yes

Design
Certification	GOST
Heavy metals free	Hg (mercury)
Feet colour	Black
Front bezel colour	Black
Product colour	Black
Market positioning	Business

Ports & interfaces
AC (power) in	Yes
HDCP	Yes
Headphone connectivity	3.5 mm
Headphone outputs	1
Headphone out	Yes
Audio output	Yes
DVI-D ports quantity	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
Built-in USB hub	No

Ergonomics
Tilt adjustment	Yes
Plug and Play	Yes
Number of OSD languages	16
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
On Screen Display (OSD)	Yes
Tilt angle range	-5 - 20°
Swivel angle range	-165 - 165°
Swivelling	Yes
Pivot angle	-2 - 92°
Pivot	Yes
Height adjustment	13 cm
Height adjustment	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Power
External power adapter	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	15.5 W

Operational conditions
Non-operating altitude	3658 - 12192 m
Operating altitude	0 - 3658 m
Storage relative humidity (H-H)	5 - 93%
Operating relative humidity (H-H)	10 - 85%
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Packaging content
Power cable length	1.8 m
Audio cable length	1.8 m
Cables included	AC, Audio (3.5mm), DVI, VGA
Stand included	Yes

Weight & dimensions
Height (without stand)	499.7 mm
Depth (without stand)	127 mm
Width (without stand)	507.8 mm
Weight (with stand)	5.65 kg
Height (with stand)	521.3 mm
Depth (with stand)	244.6 mm
Width (with stand)	507.8 mm

Packaging data
VGA cable length	1.8 m
DVI cable length	1.8 m
Package type	Box
Package weight	7.22 kg
Package height	413 mm
Package depth	177 mm
Package width	652 mm

Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR

General
Product Family	60 Series

Logistics data
Harmonized System (HS) code	85285210

Technical details
Compliance certificates	RoHS

Other features
Mean time between failures (MTBF)	50000 h
Recyclable packaging material	100%
Bezel thickness type	Normal
TV tuner integrated	No
Swivel webcam	No
On/off switch	Yes
